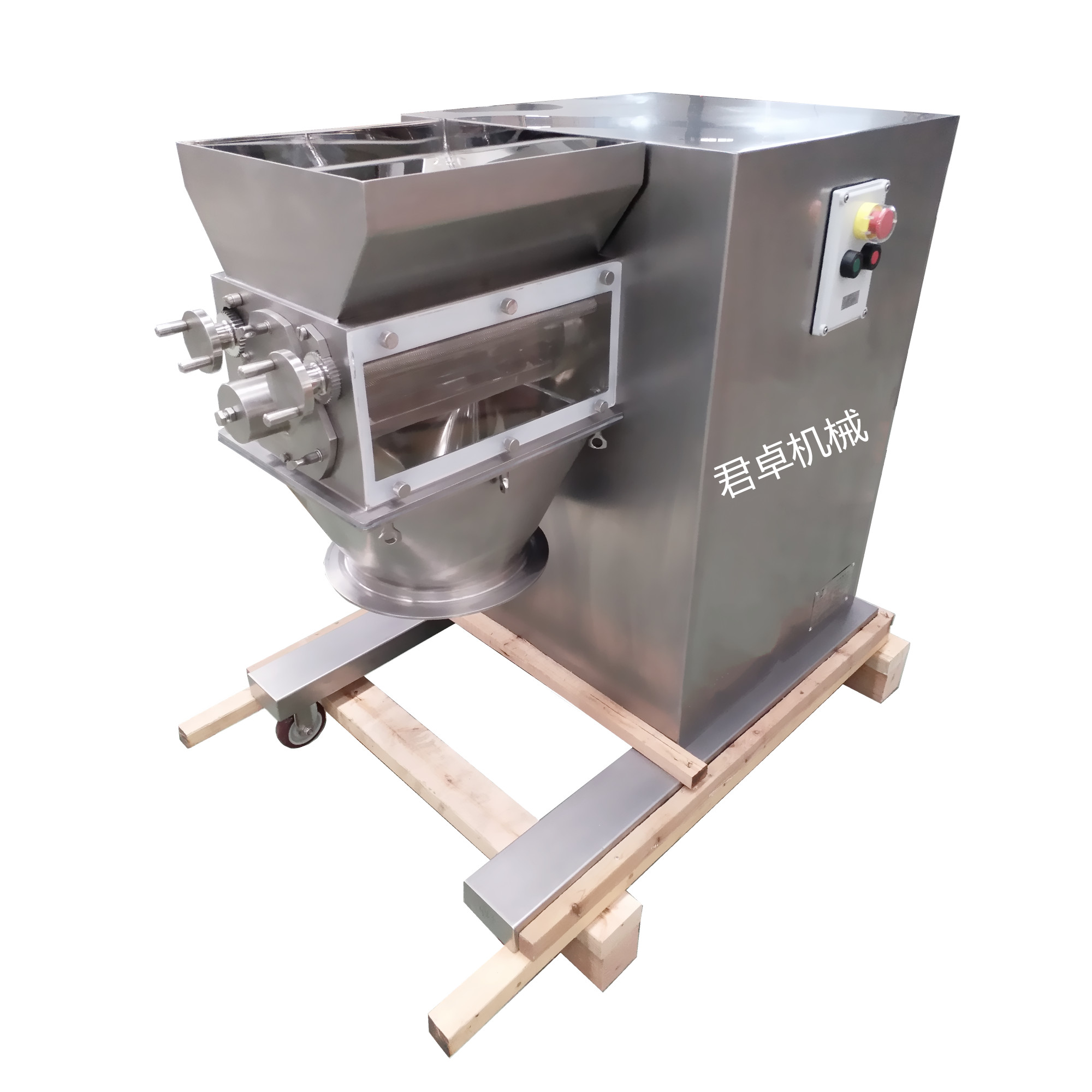

YK series Oscillating granulator with anti-explosion design

Explosion-Proof Oscillating Granulator

Video Link:

https://youtu.be/PI5JmxPKzzI?si=detBVvzW3rW8NHe-

https://youtu.be/K_p6yhiwW7s?si=5E9CkhFgwQcJuWw9

https://youtu.be/Hkl8skpErXM?si=J4pG0rVaeC33YxfG

https://youtu.be/sQYcRsJA4Bs?si=xcFaI2qOxPQZvuXt

https://youtu.be/HVv66_VmbMw?si=g9HgEC-CTdAFggCp

https://youtu.be/B8GWq5W6yUg?si=Loz1txKl03PU0NPE

https://youtu.be/QqvDUnyO3ig?si=U3h3BSFuXrjwaA8I

https://youtu.be/r1Jn4zktk5k?si=4LbJDCmN-2KA9gdW

https://youtu.be/yxzFmsdELLo?si=ucI-ZmQyvt3rcoK-

https://youtu.be/L1Ezk8LhwTQ?si=VWtwATJOq1nV3MW7

https://youtu.be/YNnPC2MxZf4?si=oPa7JDYAe4VZBQ7W

https://youtu.be/14NKsqO888Q?si=yYXqVarbV8V80hCw

https://youtu.be/nDrFmYqdaKo?si=zhOcuF5HbAA4NPRN

The explosion-proof oscillating granulator is a specially designed and manufactured device based on the standard oscillating granulator, tailored to ensure safe operation in flammable and explosive hazardous environments.

Core Application Scenarios

The device, with its explosion-proof features, is specifically suitable for industries with flammable and explosive risks such as pharmaceuticals, chemicals, and food processing. Typical applications include:

Chemical industry: Processing powder materials with solvent residues.

Pharmaceutical industry: Handling wet soft materials containing ethanol.

Food industry: Producing alcohol-based seasoning granules.

It inherits the functions of standard oscillating granulators, enabling both wet granulation and dry crushing/granulation.

• Basic Explosion-Proof Configuration: Adopts an explosion-proof motor, explosion-proof buttons, and explosion-proof indicator lights.

• Enhanced Explosion-Proof Configuration: Includes an explosion-proof motor, explosion-proof control      box (made of stainless steel or aluminum alloy), explosion-proof buttons, and explosion-proof indicator lights.

Key Explosion-Proof Components

1. Explosion-Proof Motor: Uses a sealed explosion-proof motor. Its shell can withstand internal explosion    pressure without damage and prevent internal explosive flames from spreading outside to ignite the external environment.

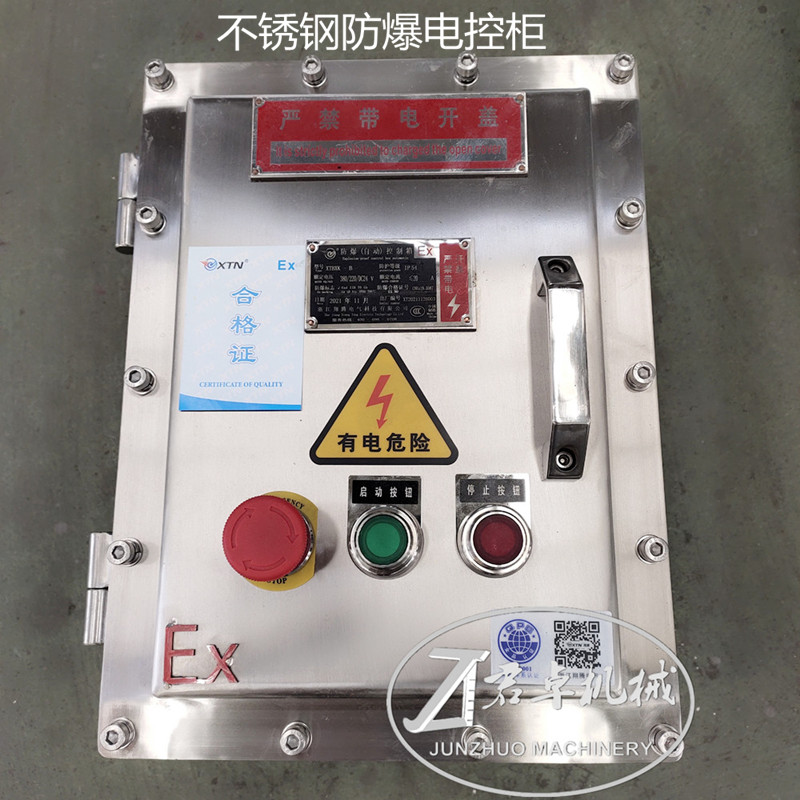

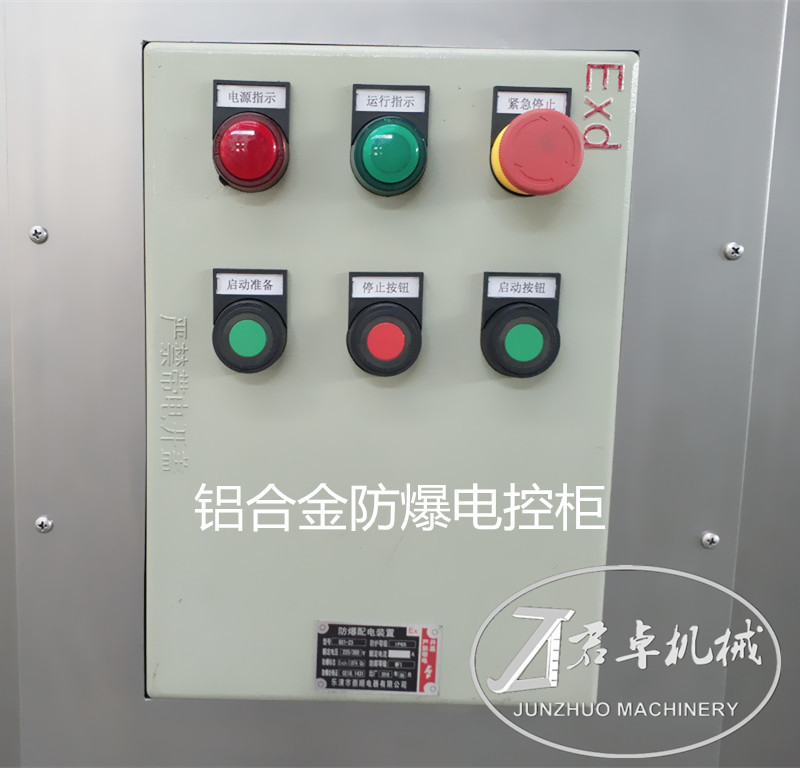

2. Explosion-Proof Control Box: All electrical components such as switches, contactors, and frequency      converters are installed in a certified explosion-proof control box,ensuring electric sparks are isolated from the external hazardous environment.

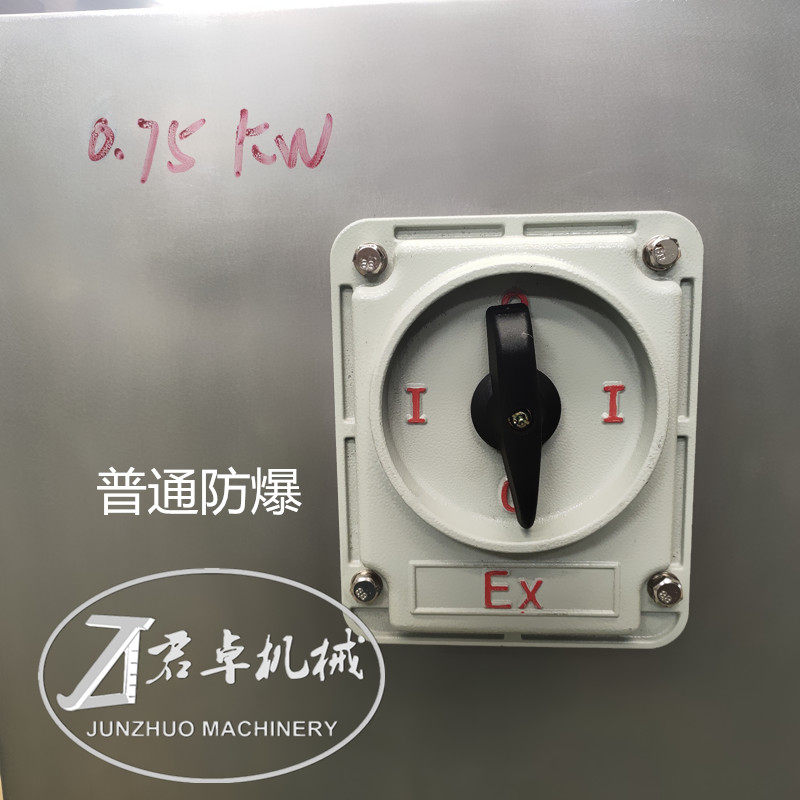

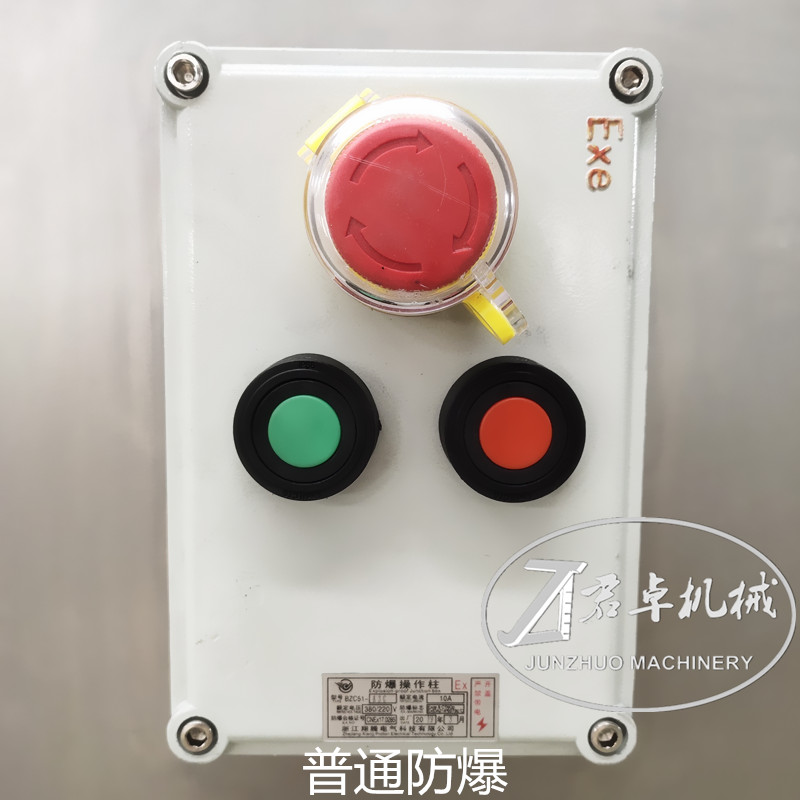

3. Explosion-Proof Buttons & Indicator Lights: Buttons and indicator lights on the operation panel must also be of explosion-proof type.
