125L V Type Dry Powder Mixing Machine

V-type blender is used to mix dry powder with different density. The volume is 125L, it is only used for small batch production. This machine is equipped with speed controller and timer(1-99minutes).

Quantity:

Share this:

Inquire Add to Basket

Product Description

125L V type mixer

Main Application

V type mixer is suitable for mixing powder and particles with good material fluidity and small physical property difference, as well as the materials with low mixing requirement and short mixing time. It is widely used in pharmaceutical, chemical, food and other industries.

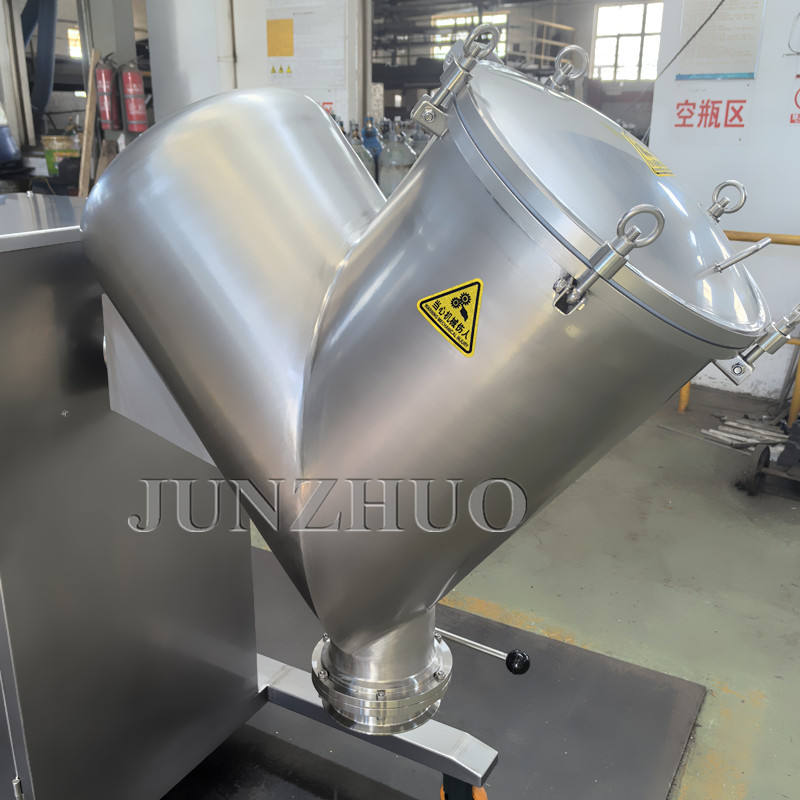

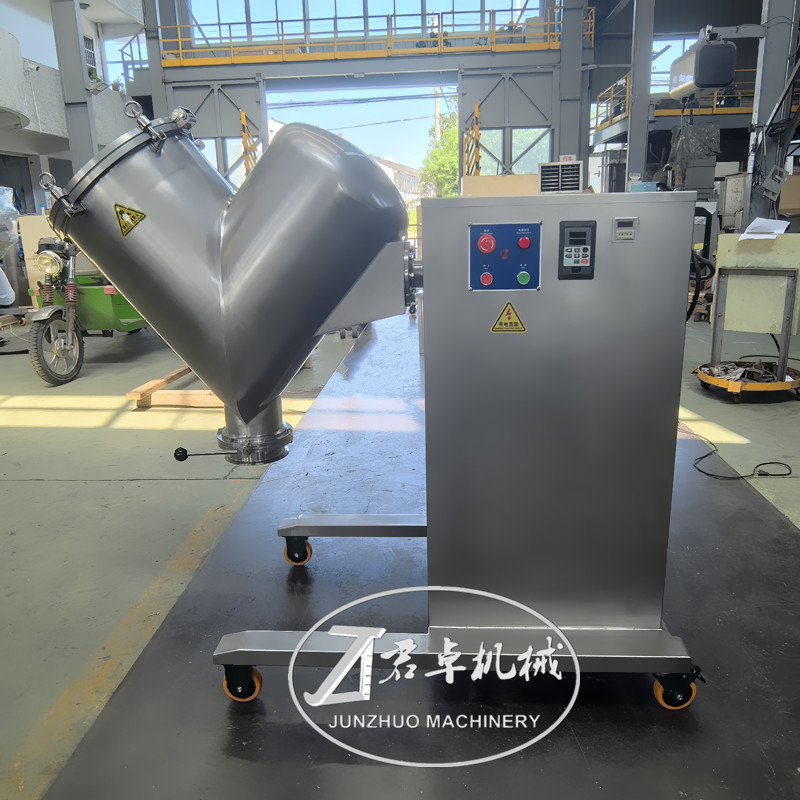

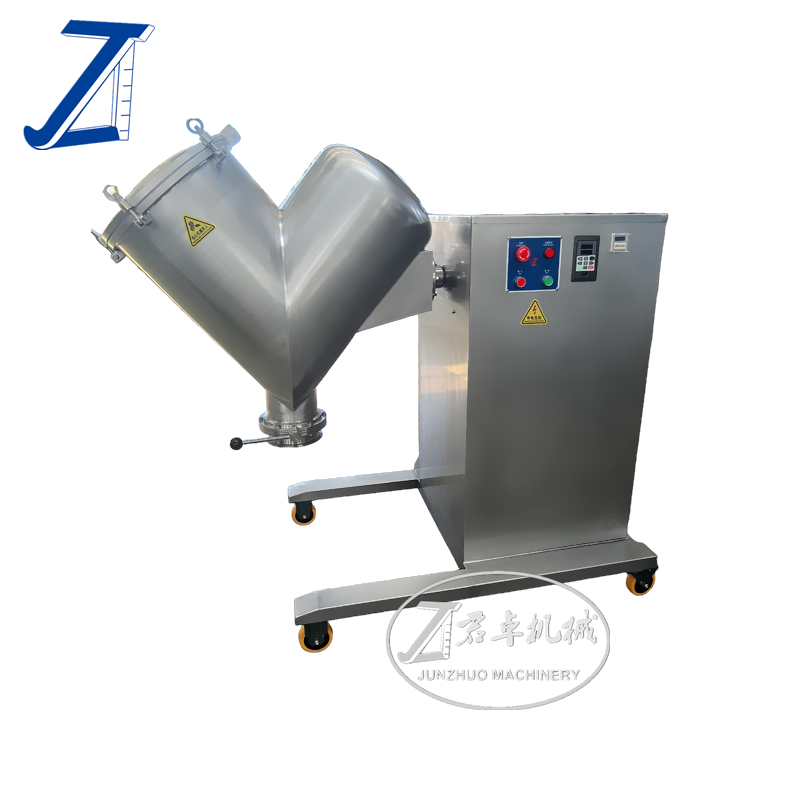

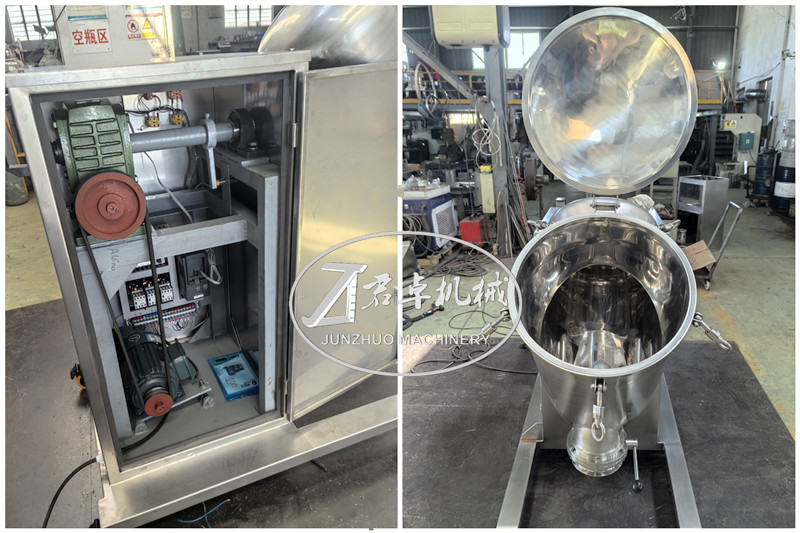

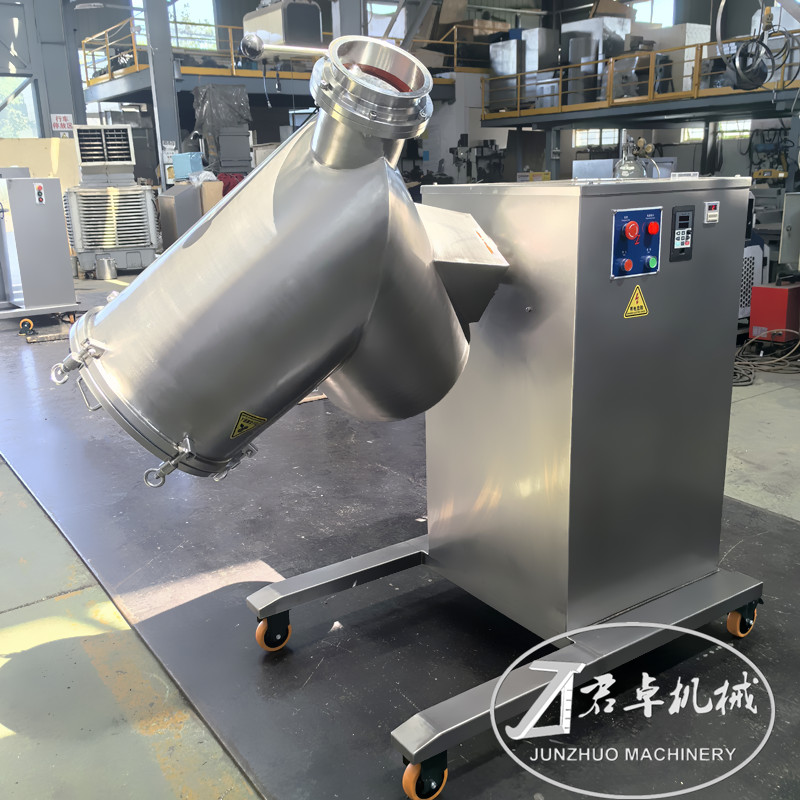

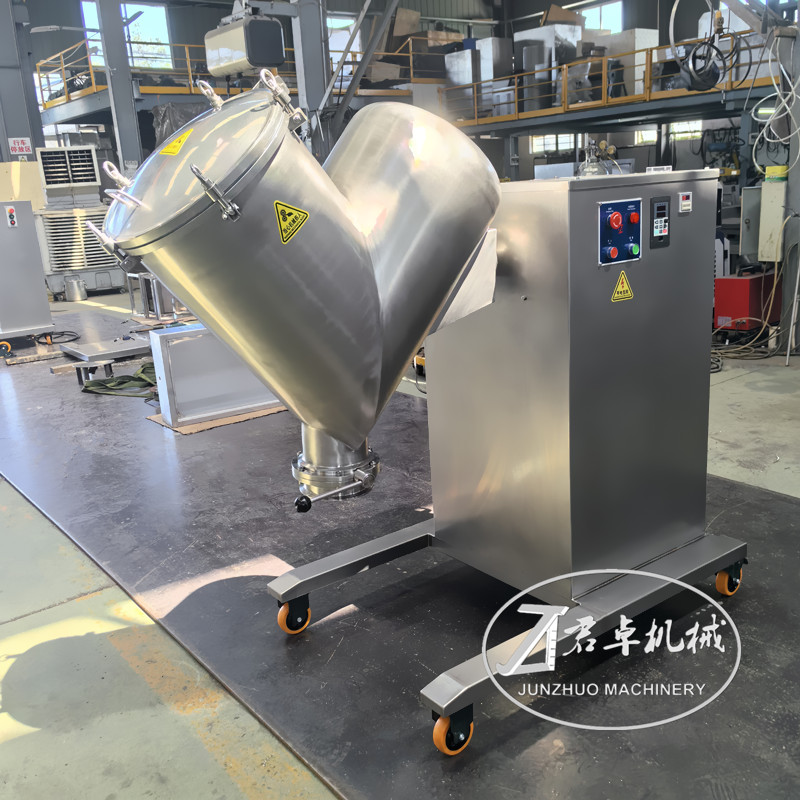

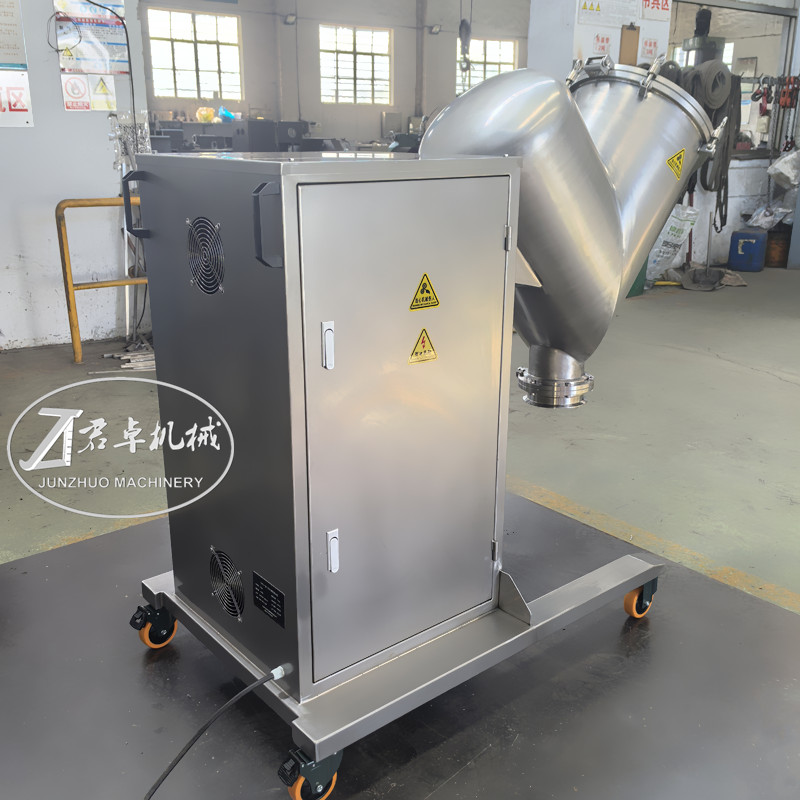

The unit consists of two cylinders arranged in a "V" shape. A manually actuated inspection and loading port is provided at the end of each cylinder, allowing access to its interior. The product outlet is located at the point where the two cylinders are joined and is fitted with a manually or automatically actuated butterfly valve. The geared motor and the bearing system are located within the lateral supports holding the blender body.

Technical Data:

1. Total Volume:125L

2.Motor Power:1.1kw

3.Loading Capacity:less than 50%

4.Mixing Time:0-99 minutes

5.Overall Size:1600*800*1500mm
