CK-160 Breaker with 360 Degree Rotation

This machine is used for crushing big blocks into small pieces, it can rotate 360 degree. The working principle is similar to YK series oscillating granulator, the screen sieve is different.

Quantity:

Share this:

Inquire Add to Basket

Product Description

Video Link:

https://youtu.be/AAYhfbnJYM4?si=ule723_eynAk2W11

https://youtu.be/M0KcaZ1GdNQ?si=a2K83ITy61EuUwGx

The pipeline breaker is a highly specialized concept. It describes an online crushing equipment integrated into the pipeline system to achieve continuous and sealed production.

The core idea of this equipment is that the breaker itself is a pipe section, and its inlet and outlet are directly connected to the upstream and downstream conveying pipes through flanges, clamps, etc.

Working principle:

Materials are continuously fed into the breaker from the upstream pipeline through pneumatic conveying, screw conveying or gravity. Inside the crushing chamber, the materials are instantly crushed by the high-speed rotating rotor. The qualified particles after being crushed are immediately discharged from the outlet under the drive of the air flow or material flow and enter the downstream pipeline to proceed to the next process (such as mixing, drying, and packaging).

Technical Data:

滚筒直径Rotor diameter：160mm

生产能力Capacity：50-300kg/h

颗粒度Granule size：1-5mm

电机Motor power：2.2kw

主轴转速Rotation speed：65转/分

外形尺寸Overall size：765*735*500mm

重量Approx. weight：120kg

The pipeline breaker is highly suitable for the following industries and working conditions:

Pharmaceutical industry:

In a continuous manufacturing production line, materials that have become lumpy after being crushed and dried or substandard tablets.

When handling highly active drugs (HPAPI), ensure absolute sealing.

Food industry:

Lumps formed during the crushing process on powder conveying lines such as milk powder, starch, and candies.

Chemical industry:

In pneumatic conveying systems, lumps of materials such as fertilizers, plastic particles, and dyes are crushed online.

New energy industry:

On the production line of battery materials, raw materials are depolymerized and crushed online.

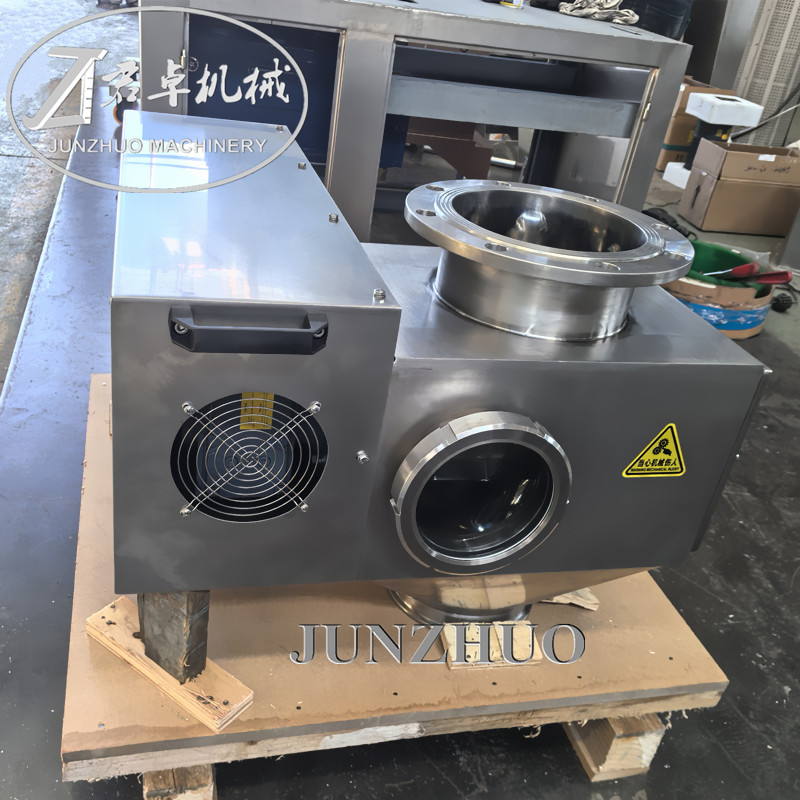

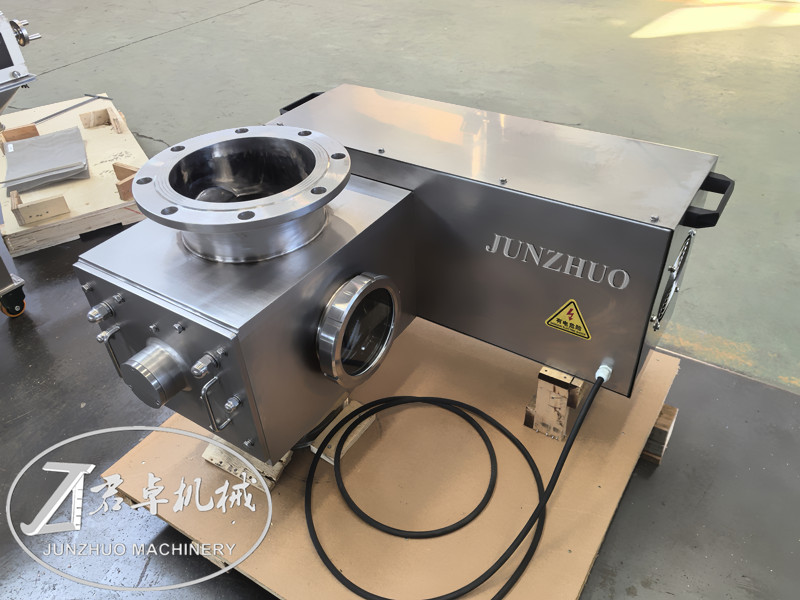

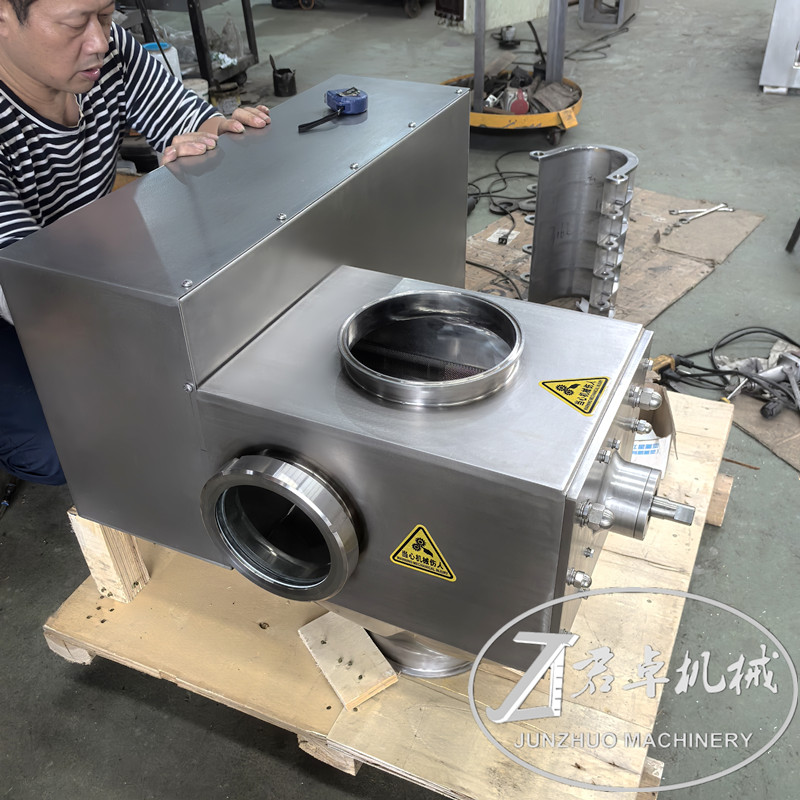

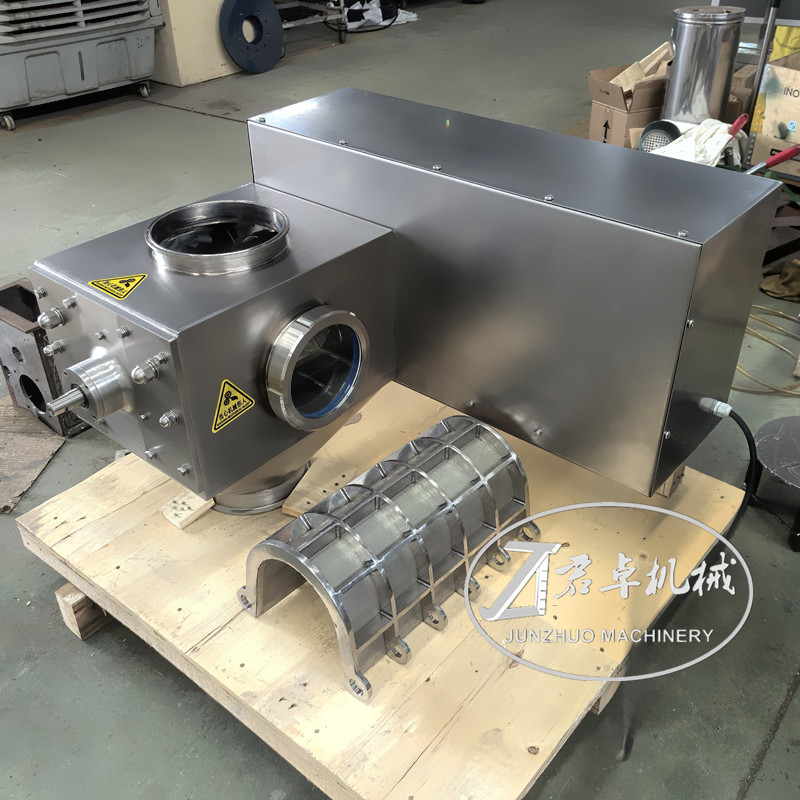

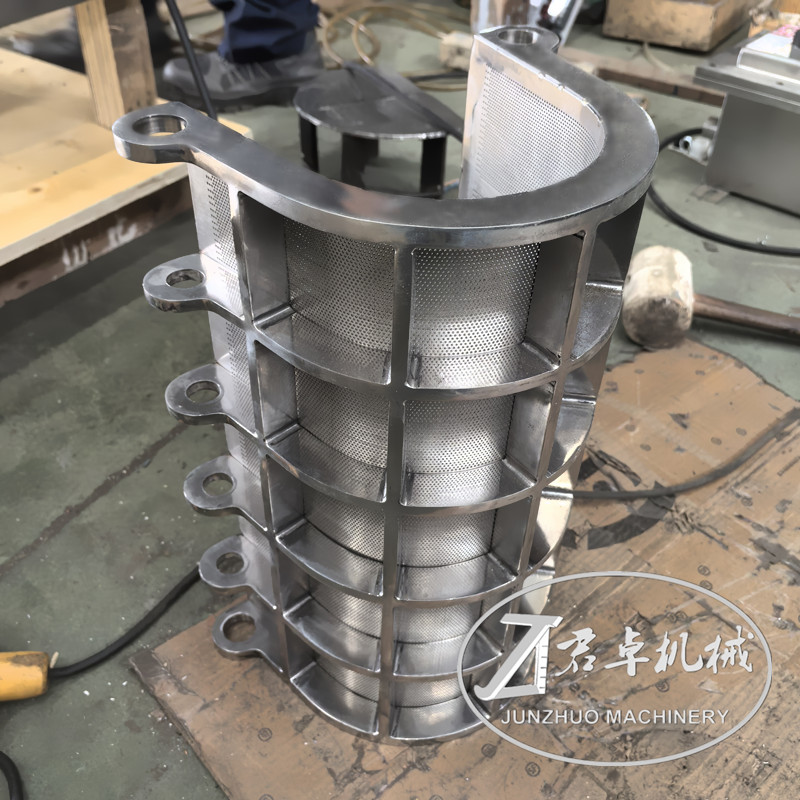

This machine is different from YK series oscillating granulator, the screen sieve is as a whole. The rotation degree is 360, it is space-saving with compact structure. Both sides have visible window so that we can keep an eye on the production.
