WF600C Pulverizer With Pulse Dust Collector

WF600C Pulverizer With Pulse Dust Collector

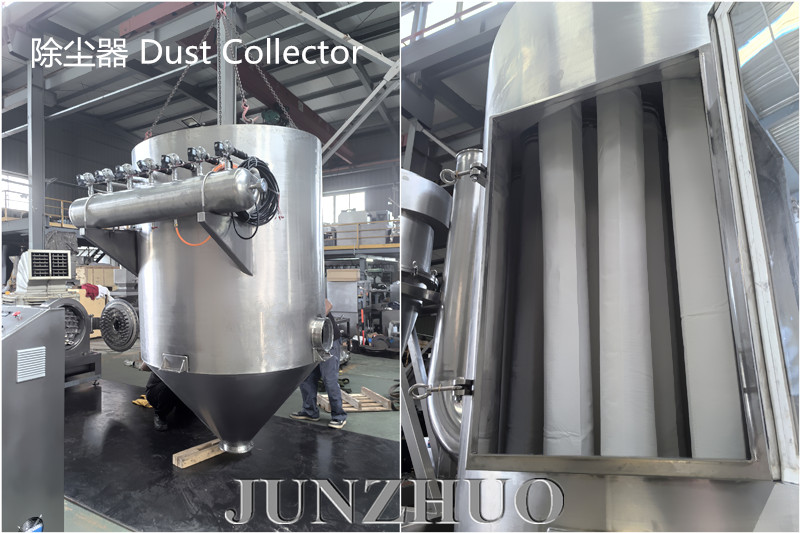

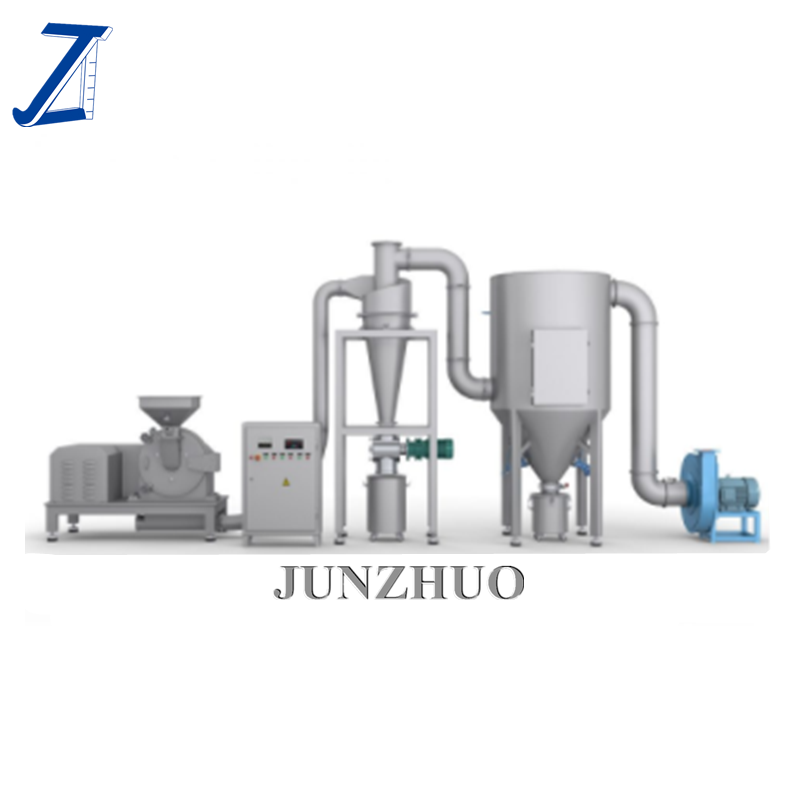

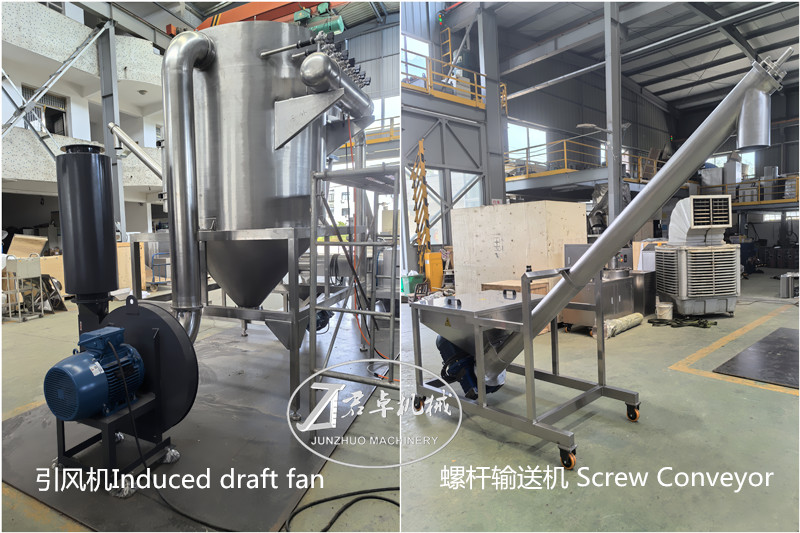

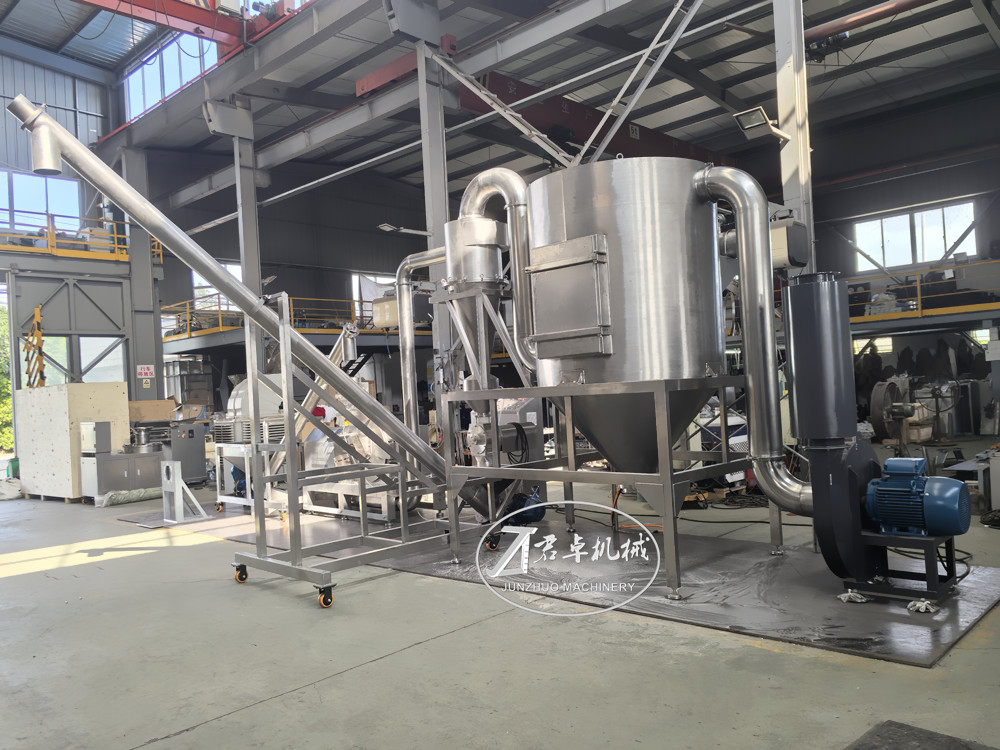

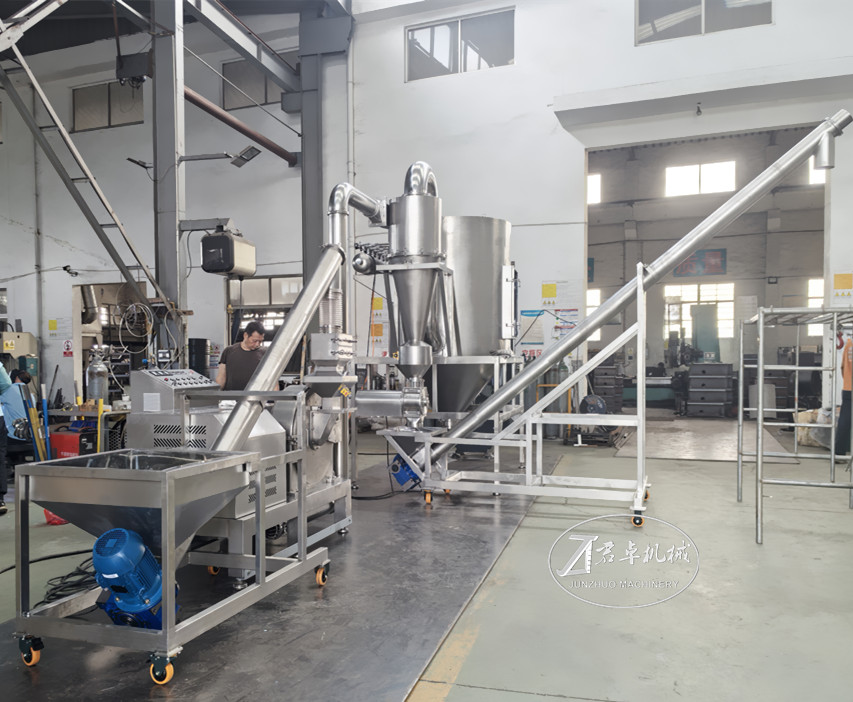

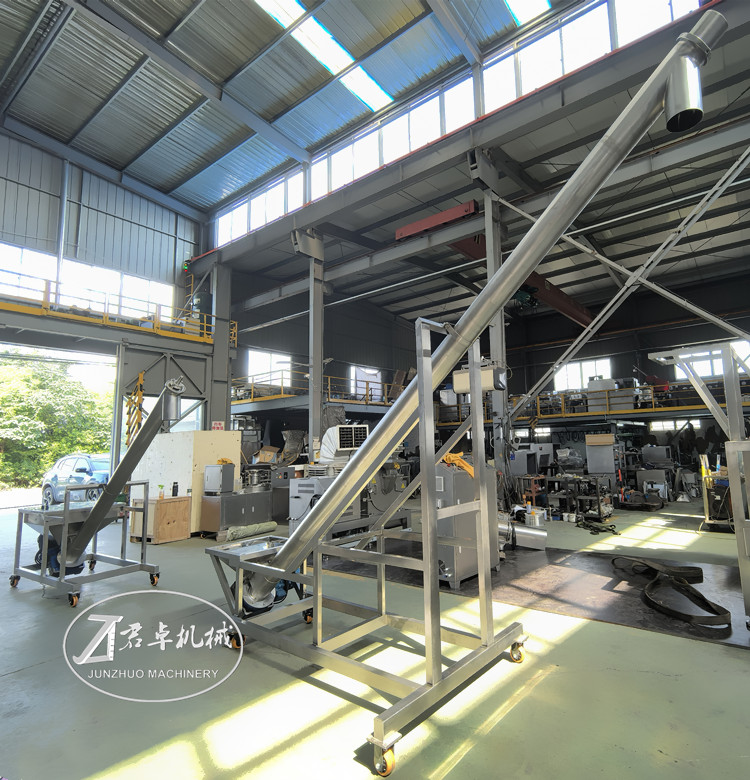

The equipment is a set of induced draft fan,grinder,pulse dust collector,discharge valve,screw conveyor and independent electrical control cabinet. The screen sieve hole size ranges from 20 to 120mesh.(0.4-2.0mm)

Quantity:

Share this:

Inquire Add to Basket

Product Description

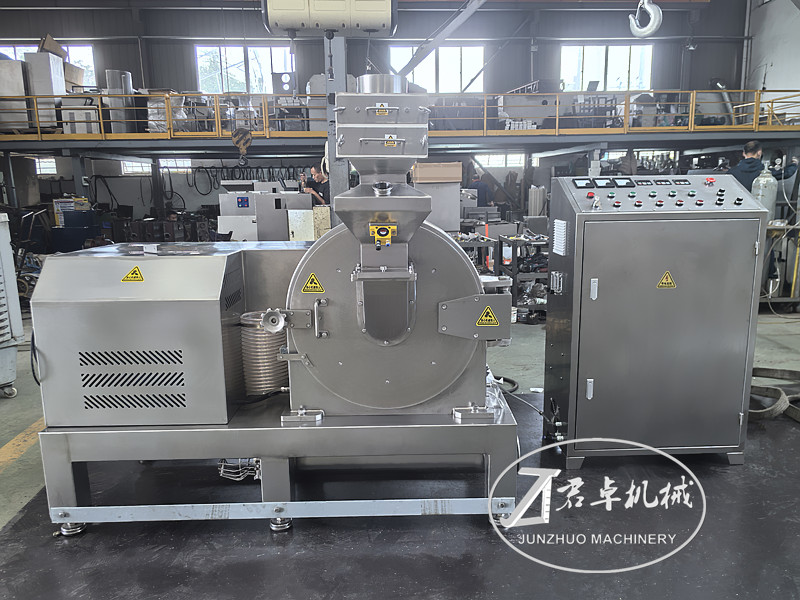

The universal mill is made of 304 stainless steel, driven by our domestic motor, it is suitable for crushing materials in pharmaceutical, chemical, food, chemical and other industries. (such as sugar, granulated sugar, salt, corn, starch, oats, flour, beans, peas, lentils, spices, flavors, sweeteners, dried fruit, nuts, potato chips, bread pieces, coffee, cocoa powder, potato powder, milk powder, onion, dehydrated vegetables, lotus seed, glucose, oat hulls, shells, ginger, Chinese prickly ash, chili, pepper, naked oats, star anise, cinnamon and so on)

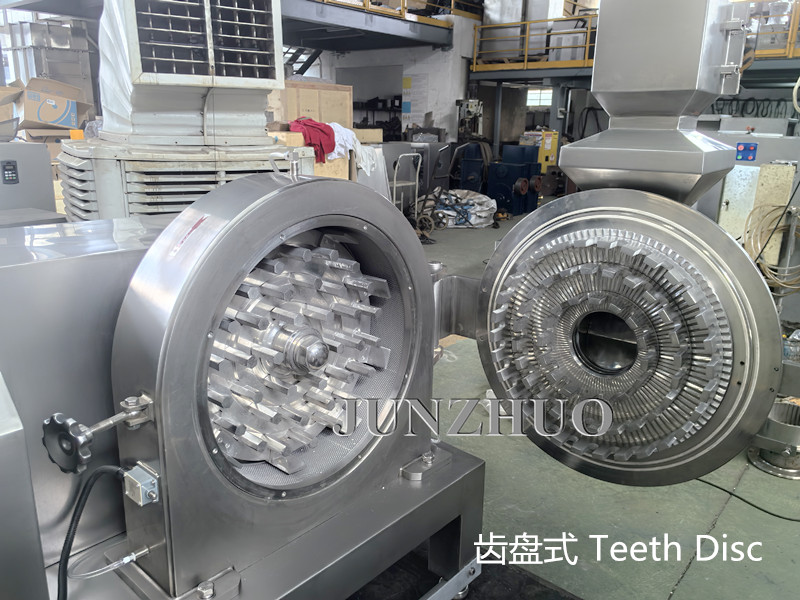

By the high speed operation between movable and fixed disc, the milling machine can crush raw materials very well. The powder is discharged from grinding chamber to output hole, the powder is collected by a bag. There will be no dust and no waste. The fineness (20 to 120 mesh size) is depended on screen sieve mesh size, it is very easy to change and adjust the sieves.

The machine is made of 304 or 316L stainless steel, there is no sharp edges/ crevices / pin - holes in the equipment surface. With the advantages of little space, compact structure and good performance, it is quickly to get uniform powder.

WF30B Universal Grinder

Technical Data

WF-600C脉冲除尘型粉碎机 Pulse dust removal type pulverizer
型号Model	WF-600C
功率Power（kw）	主电机Crushing motor 18.5kw 吸尘电机Dust collector 11kw 关风机电机Fan Motor 0.75kw
细度（目）Fineness	10-120mesh(0.4-3.0mm)
生产能力Capacity（kg/h）	200-1500
主轴转速/分Speed	2600rpm
进料细度Input size	＜10mm
外形尺寸Overall size(mm)	8580×1780×3300
重量Approx. Weight（kg）	2500kg
