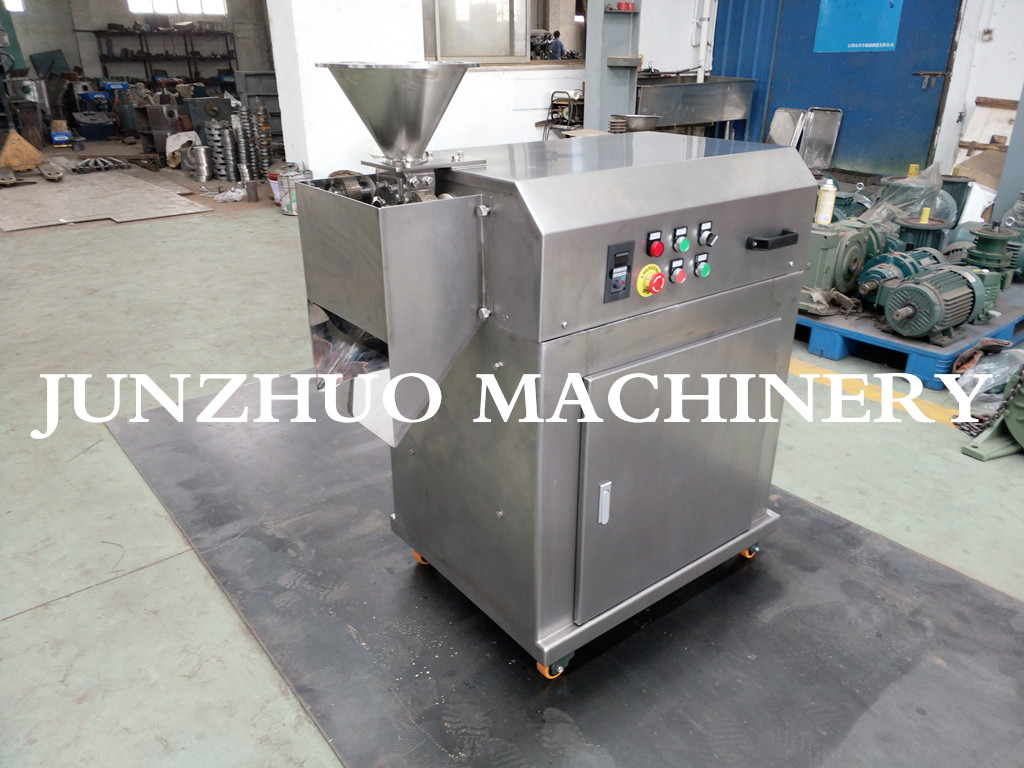

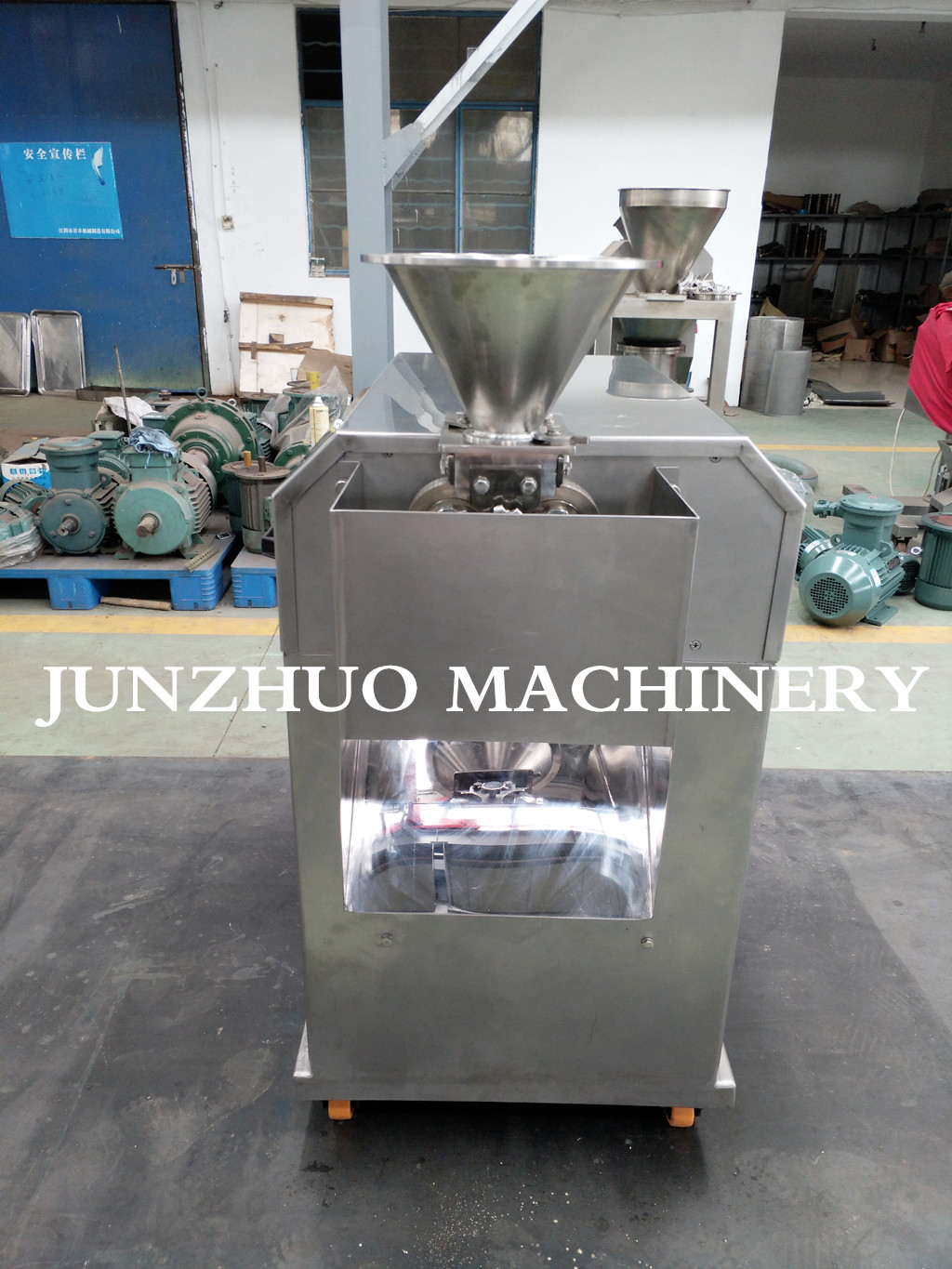

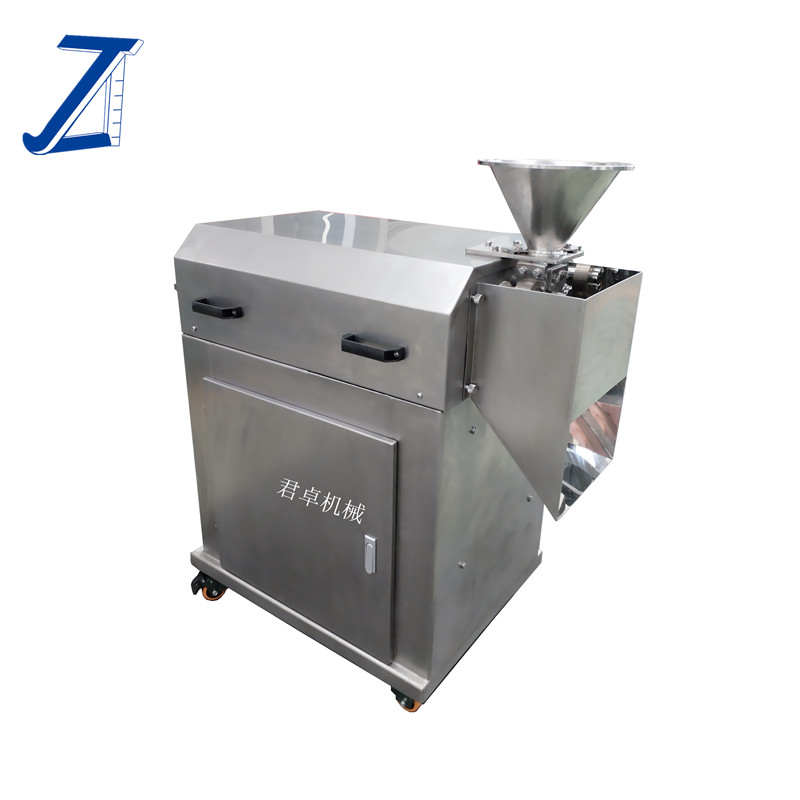

GK30 Model Roller compactor(only tabletting)

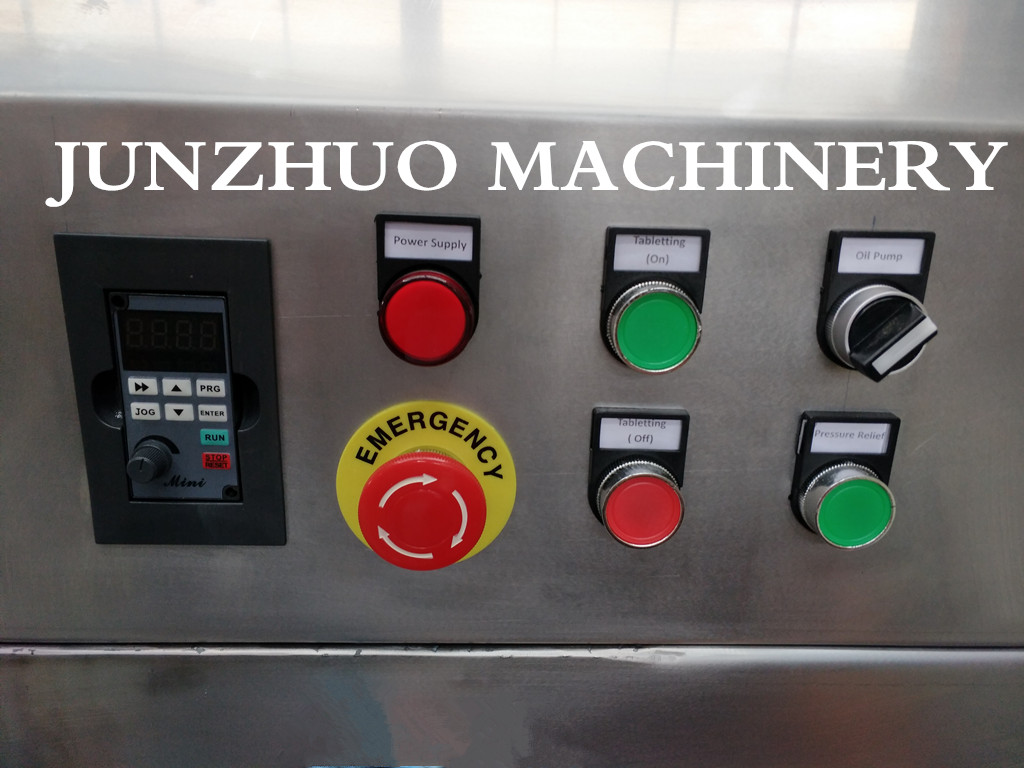

This type roller compactor only has tabletting function, it can make dry powder into sheet, but there is no granulating system. The raw material shoule be fed by manual, there is no feeding screw. Standard GK30 model is used for lab testing, it has no water cooling system. This machine is easy to use, it is button control.

The most advantage of this machine is economical, it is simple, small, save space.

Main Application:

In pharmaceutical industry, roller compaction has become the method of choice for dry granulation.

Because of its reasonable design, the process technology can be almost completely disassembled without special tools.

The movable design provides great flexibility during compaction feasibility studies and allows an easy maintenance.

Working Principle:

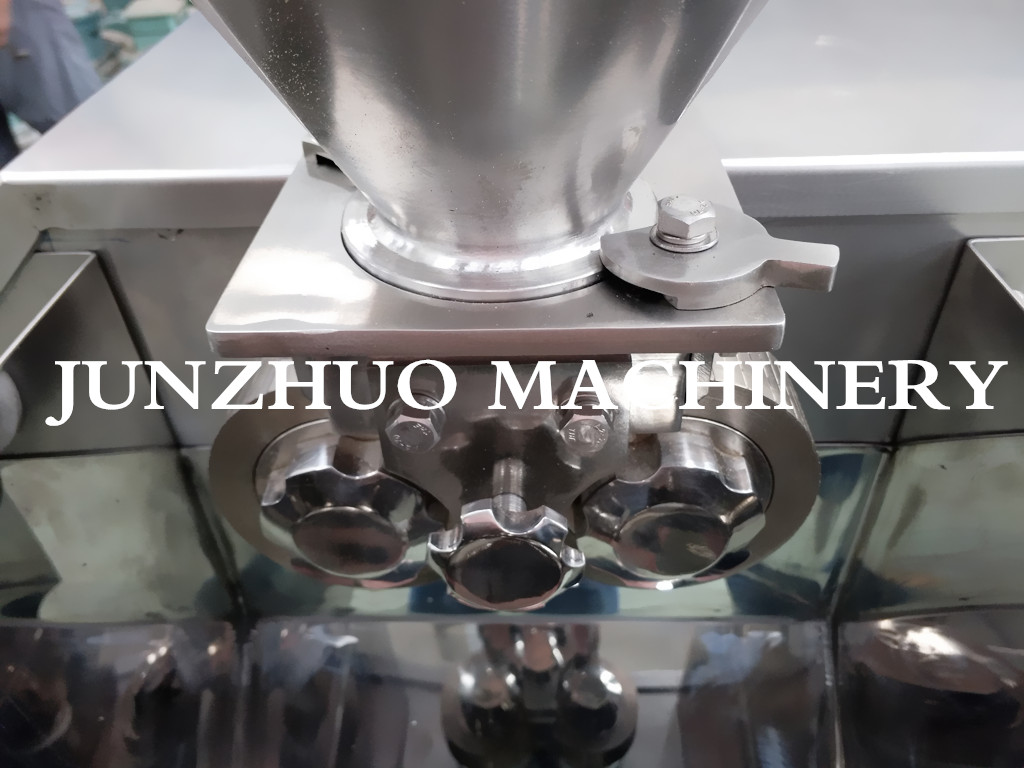

1. Material is fed by manual between two counter-rotating roll presses.

2. The rolls apply extreme pressure, to press the material into a sheet form.

Technical Data:

1.Capacity：            1-10kg/h

2. Feeding:              by manual

3.Roller Speed：         4-25 RPM

4.Roller Size:            φ100*30mm

5. Tableting motor power：             1.5KW

6. Hydraulic power：                  0.75KW

7. Max. Pressure：                    6T

8.Overall Diameter：                 900*620*1000mm

9. Approx. Weight：                  400KG
